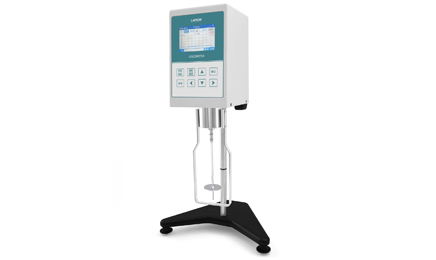

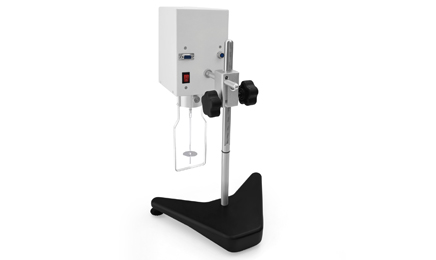

Viscosity Tester has the characteristics of high measurement sensitivity, reliable test results, easy operation, and beautiful appearance. It is a precision instrument used to measure the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids. It can be widely used in the measurement of various products such as grease, paint, plastic, medicine, food, coatings, adhesives, viscometers, resins, and chemical raw materials. |
|
Viscosity Tester is a digital viscosity meter. The rotor is driven by a motor through a variable speed belt to rotate at a constant speed. When the rotor rotates in the liquid, the liquid will generate a viscosity torque acting on the rotor. The greater the viscosity of the liquid, the greater the viscous torque; conversely, the smaller the viscosity of the liquid, the smaller the viscous torque. The viscous torque acting on the rotor is detected by a sensor and the viscosity of the tested liquid is calculated after being processed by a computer. The instrument comes with 4 types of rotors (No.1, No.2, No.3, No.4) and two speed modes: stepless speed regulation and grade speed regulation. The grade speed regulation has 10 speeds (0.5, 1, 2, 2.5, 4, 5, 10, 20, 50, 100 rpm), which can measure the viscosity values of various liquids within the measurement range. It also has a temperature measurement device, which can display the temperature directly on the screen, and observe the viscosity change caused by temperature change. |
